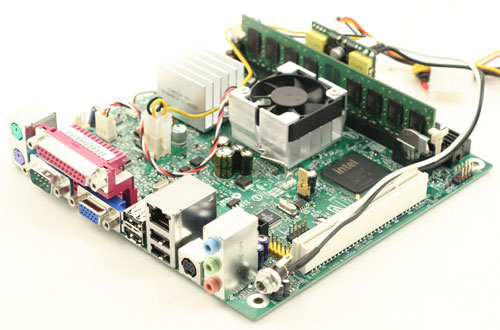

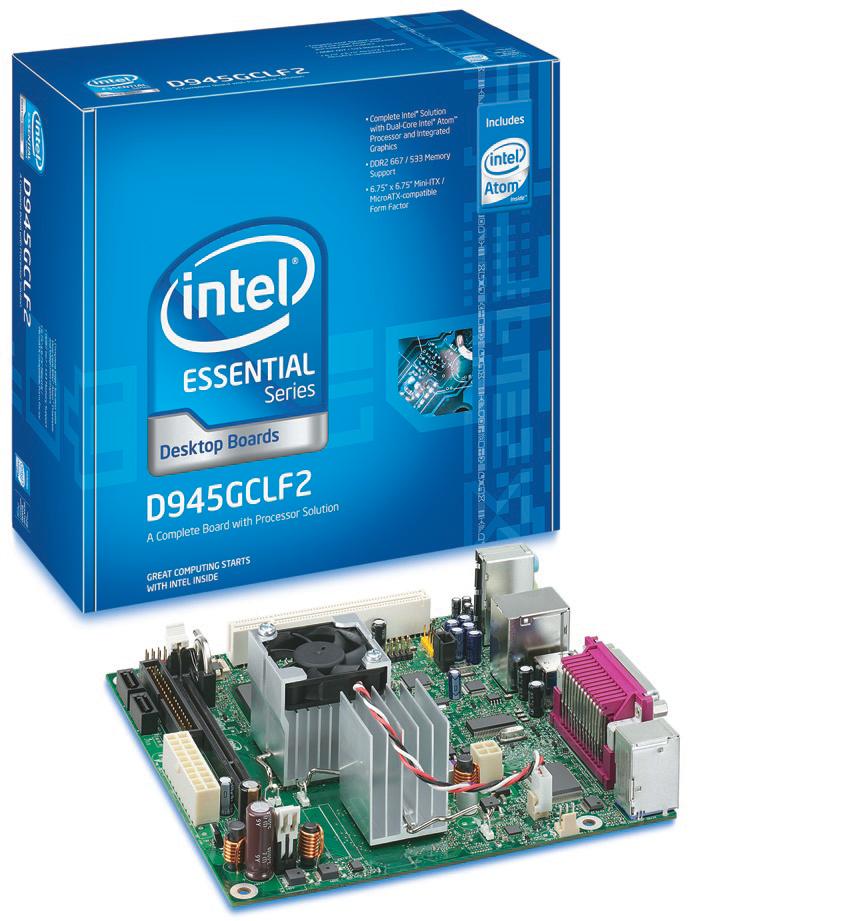

atom 330 and motherbord, the top view has memory and card modual in place ready for a car install
Processor
Processor Support
• Dual-Core Intel® Atom™ Processor 330
integrated (1.6 GHz / 2 x 512 KB L2 Cache /
533 System Bus)
Chipset
• Intel® 945GC Express Chipset with ICH7

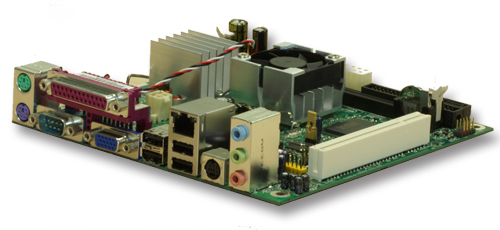

I/O Features
• Integrated super I/O LPC bus controller
• Ultra ATA 100/66 device support
• Two SATA ports (3.0 Gb/s)
• One PCI local bus slot
• S-Video connector (Intel® Desktop Board
D945GCLF2 only)
USB 2.0
• Four back panel ports
• Two onboard headers providing four port
support
Audio Solution
• Integrated High Definition Audio (6-channel)
with front panel header
10/100/1000 Network Connection
• Onboard 10/100/1000 Ethernet LAN
SPI
System BIOS
• 4 Mb Flash EEPROM with Intel® BIOS featuring
Plug and Play, IDE drive auto-configure
• Advanced configuration and power interface
V
2.0, DMI 2.0Intel® Rapid BIOS Boot
• Optimized POST for fast access to PC
from power-on
System Memory
Memory Capacity
• One 240-pin DIMM connector
• Designed to support up to 2 GB of system
memory using DDR2 667 / 533 SDRAM
2Memory Type
• DDR2 667 / 533 SDRAM
2Memory Voltage
• 1.8 V
Wake-up from Network
• Wired for Management (WfM) 2.0-compatible
• Support for system wake-up using an add-in
network interface card with remote wake-up
capability
Expansion Capabilities
• One PCI bus add-in card connector
Jumpers and Front-Panel Connectors
Jumpers
• Single configuration jumper design
• Jumper access for BIOS configuration mode
Front Panel Connectors
• Reset, HD LED, Power LEDs, power on/off,
aux LED
• Two USB 2.0 headers
• Audio header
Mechanical
Board Style
• Mini-ITX/microATX compatible
• 6.75” x 6.75” (17.15 cm x 17.15 cm)
Desktop Board Power Requirements
• ATX12V or SFX12V
Environment
Operating Temperature
• 0° C to +55° C
Storage Temperature
• -20° C to +70° C
Regulations and Safety Standards
United States and Canada
CSA/UL 60950-1, First Edition
(Binational Standard)
Europe
(Low Voltage Directive 2006/95/EC)
EN 60950-1:2006
International
IEC 60950-1:2001, First Edition
EMC Regulations
(tested in representative chassis)
United States
FCC 47 CFR Part 15, Subpart B
Canada
ICES-003, Issue-004 Class B
Europe
(EMC Directive 2004/108/EC)
EN 55022:2006 and EN 55024:1998
Australia/New Zealand
EN 55022:2006 Class B
Japan
VCCI V-3/2007.04, V-4/2007.04, Class B
South Korea
KN-22:2005 and KN-24:2005
Taiwan
CNS 13438:2006 Class B
International
CISPR 22:2005 +A1:2005 +A2:2006 Class B
Environmental Compliance
Europe
Europe RoHS (Directive 2002/95/EC)
China
China RoHS (MII Order # 39)
Lead-Free:
The symbol is usedto identify electrical and electronic
assemblies and components in which
the lead (Pb) concentration level in
any of the raw materials and the end product is
not greater than 0.1% by weight (1000 ppm). This
symbol is also used to indicate conformance to
lead-free requirements and definitions adopted
under the European Union’s Restriction on Hazardous
Substances (RoHS) directive, 2002/95/EC.
Ordering Information: See the Intel
Web site at www.intel.com. For the
most current product information,
visit intel.com/products/desktop/
motherboard
